Project

The project consists in the creation of an interactive 3D simulation of the mining sites of Porto Flavia, Galleria Henry and Sos Enattos.

CLIENT: IGEA SPA
GALLERIA HENRY: Watch the video
YEAR: 2011-2013

Info

The navigation software is characterized by a high photo-realistic detail, as well as by a real-time navigation system for the exploration in fully interactive mode the reconstructed environments and sceneries.The reconstructions have very high technical precision, because of the innovative features of the survey technologies used (laser survey, aerofotogrammetry cartography and photographic survey).

Reconstructed sites

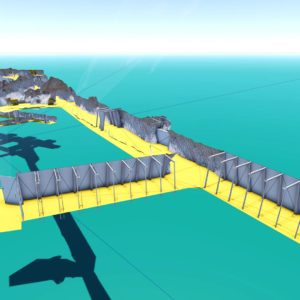

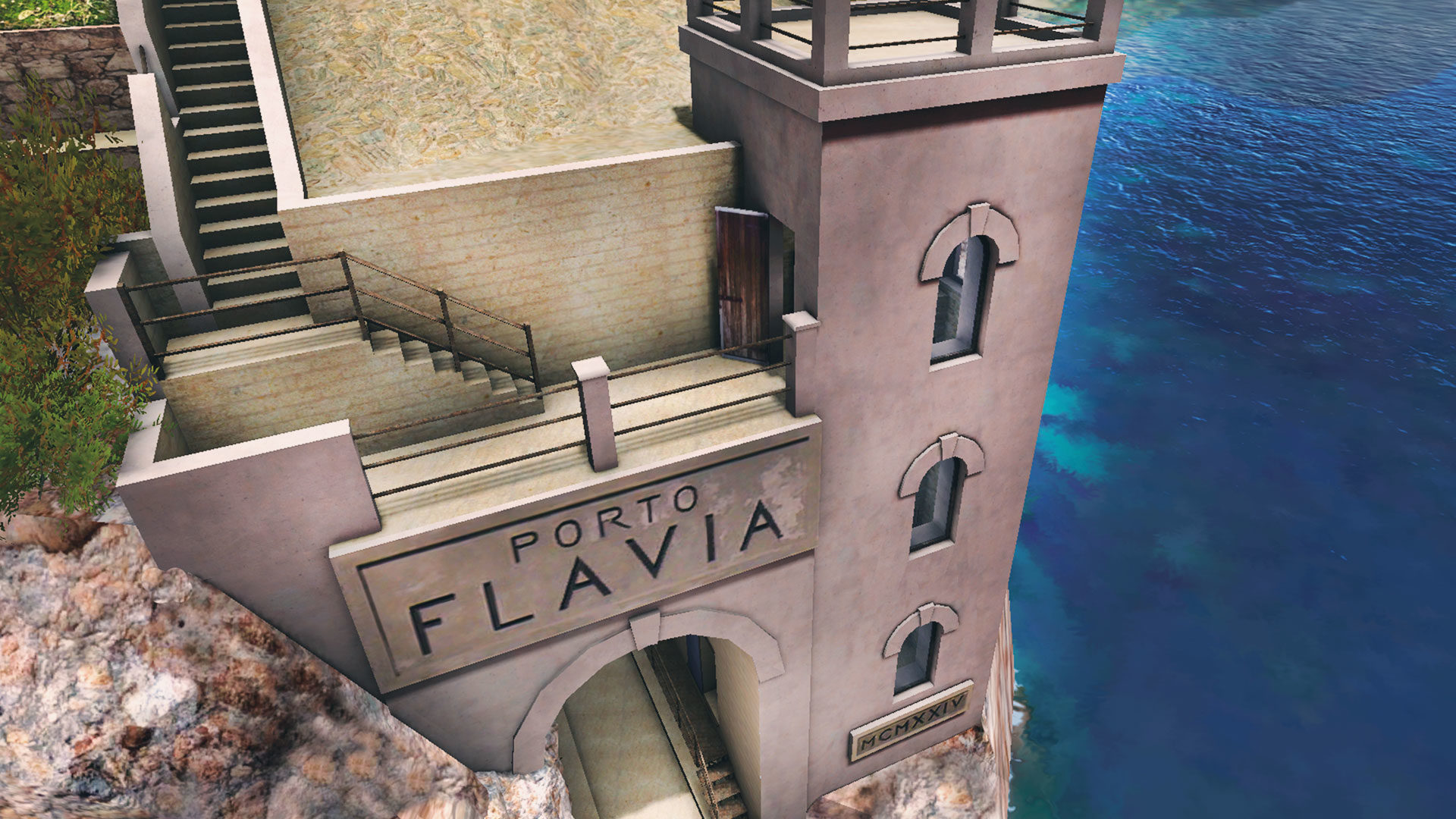

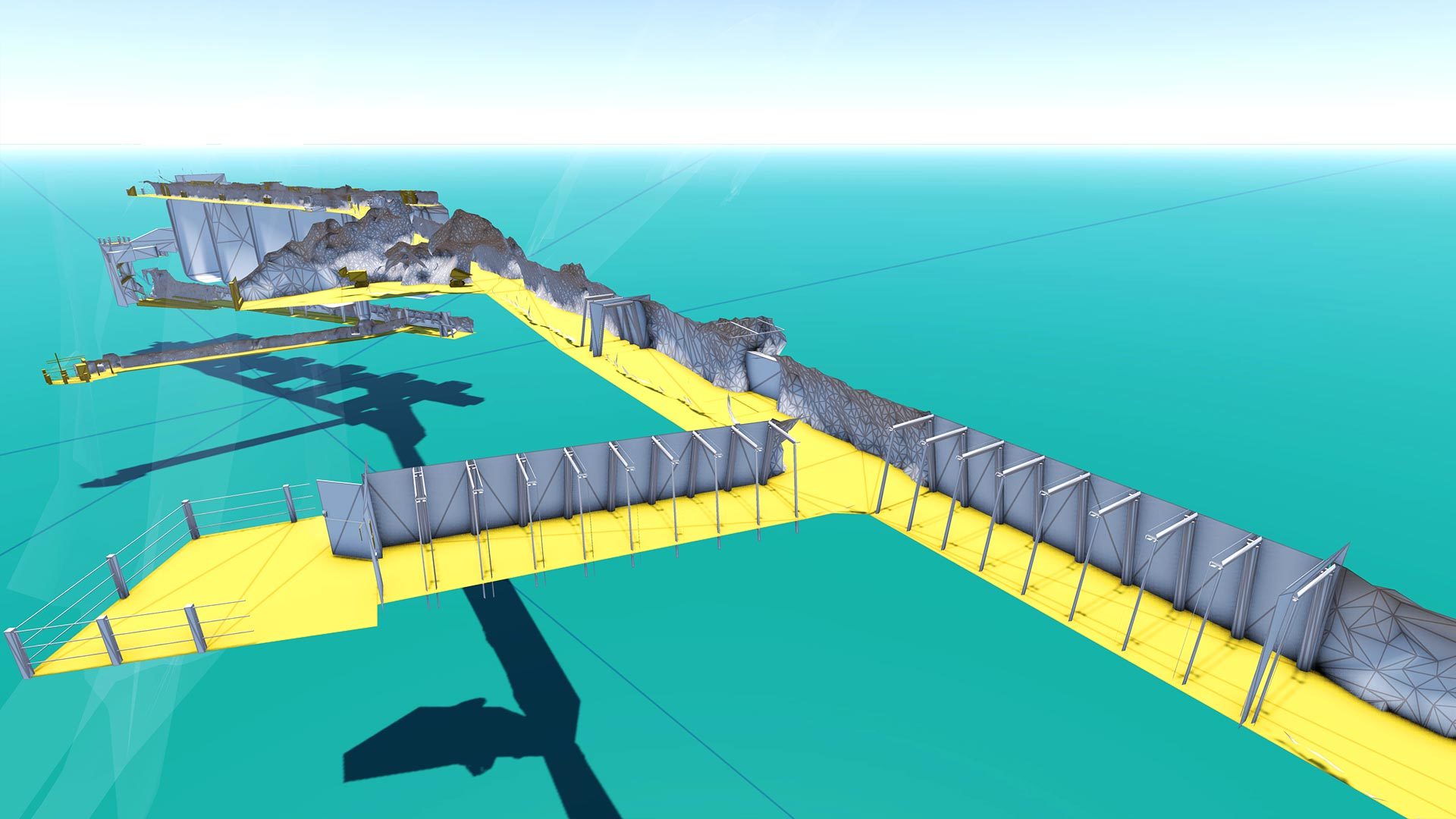

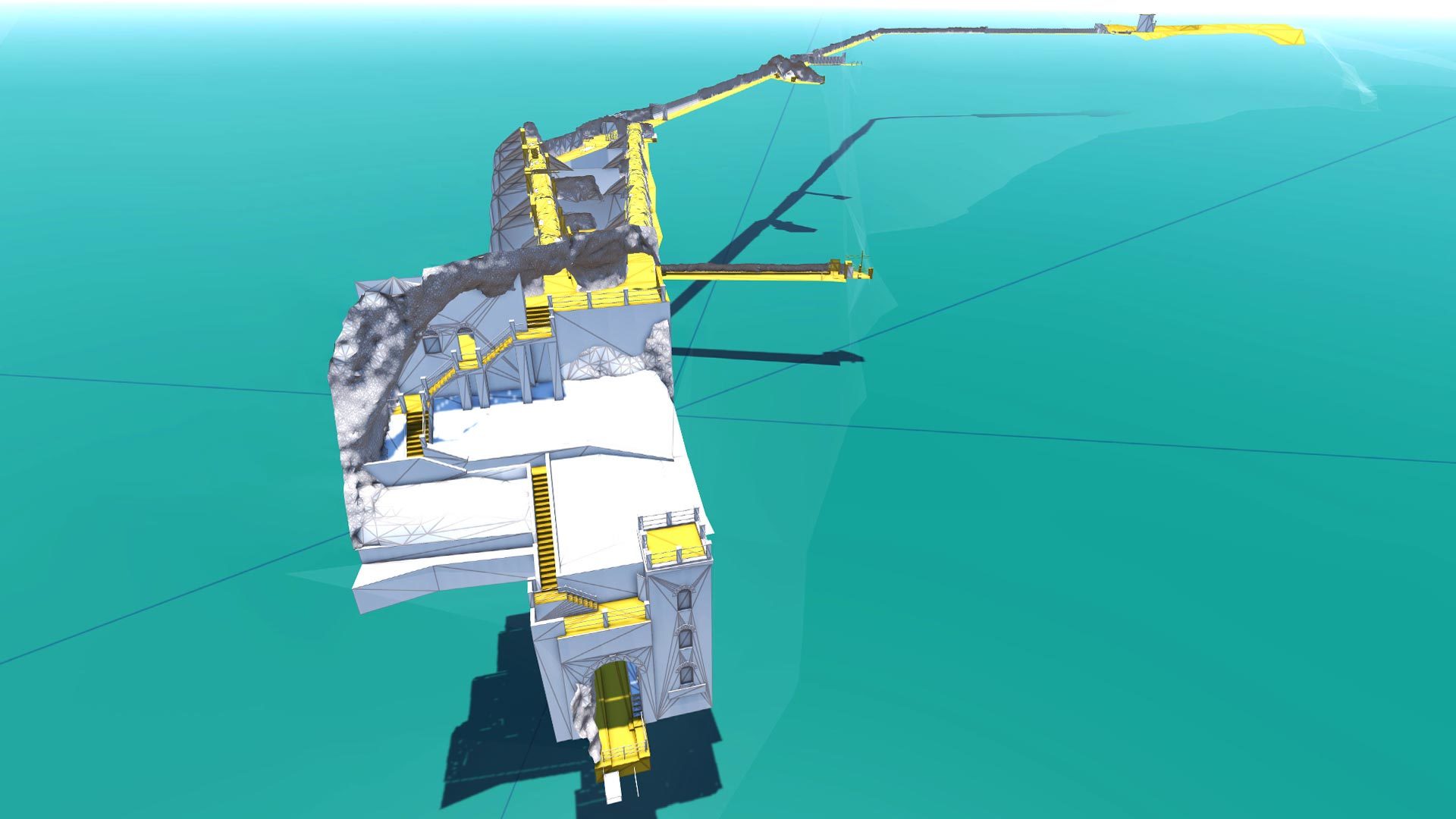

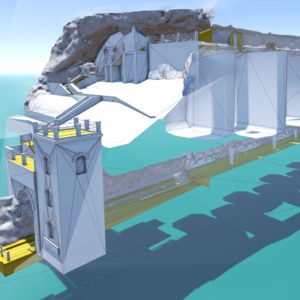

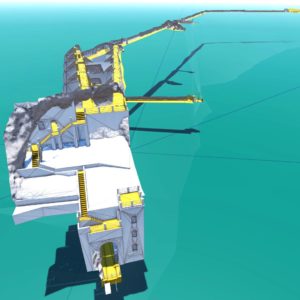

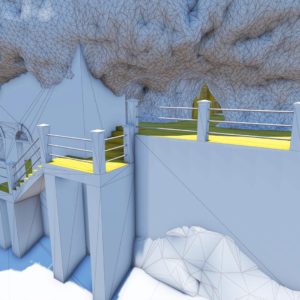

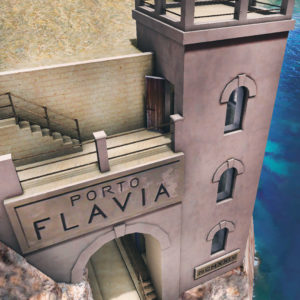

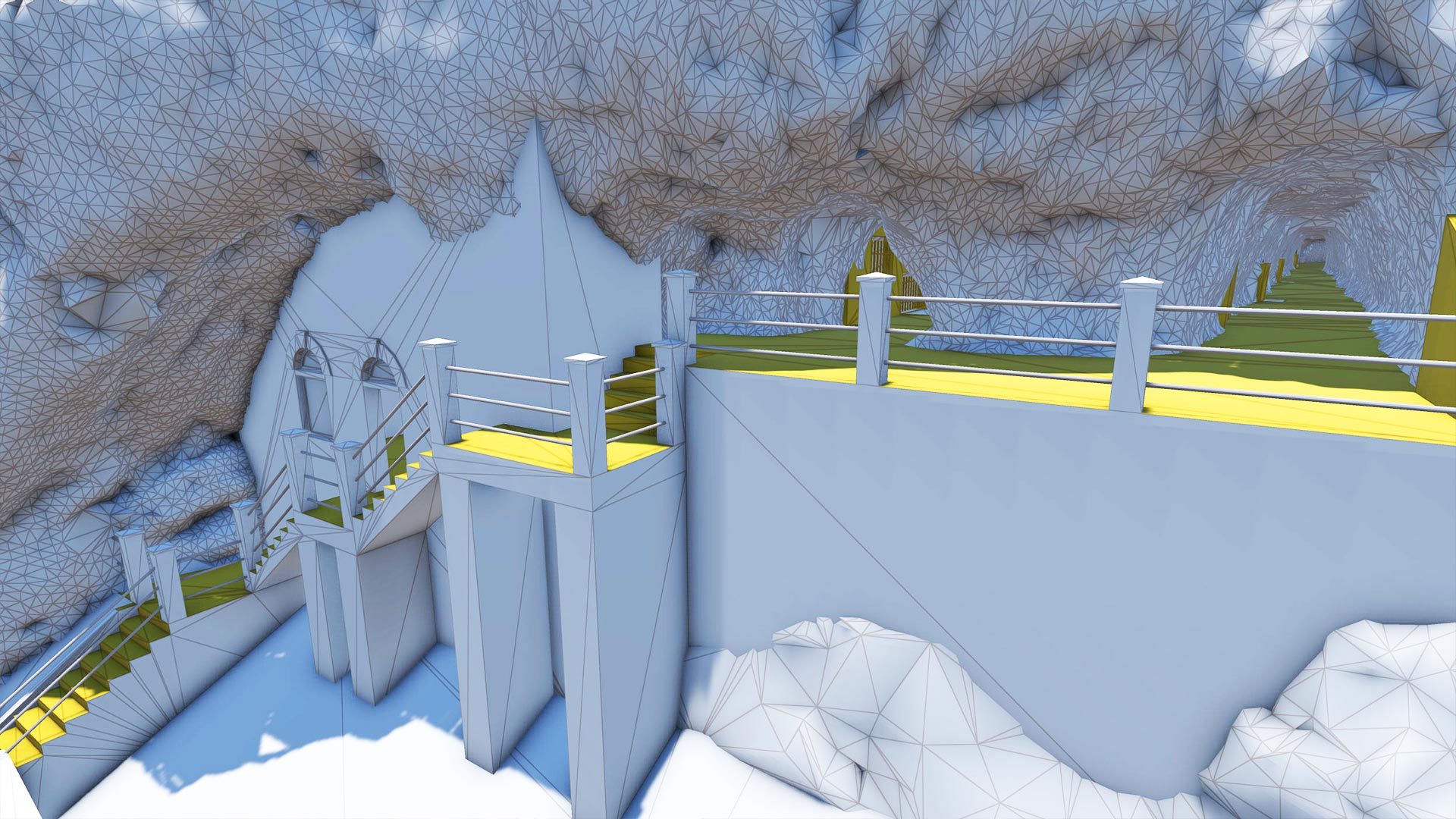

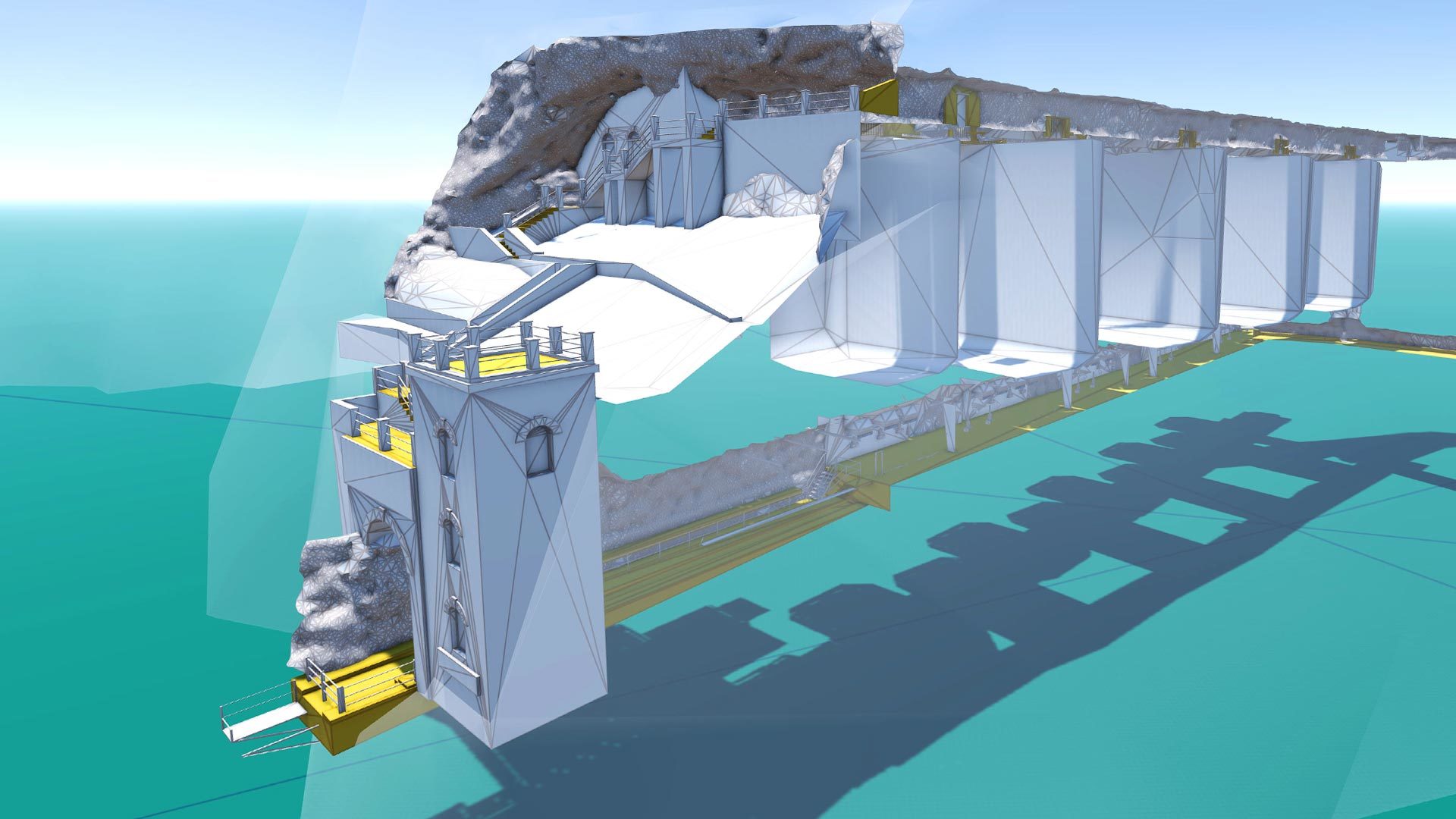

PORTO FLAVIA
The project consist in the 3D reconstruction of the Porto Flavia tunnel system, which served as transportation way of the ore extracted from the nearby mines and its loading on cargo boats. The site is located nearby the village of Masua, hamlet of the town of Iglesias. For carrying out the simulation, laser survey of the whole internal structure has been obtained through 70 scanning stations, while cartographic elaborations have been used for the description of the external morphology.

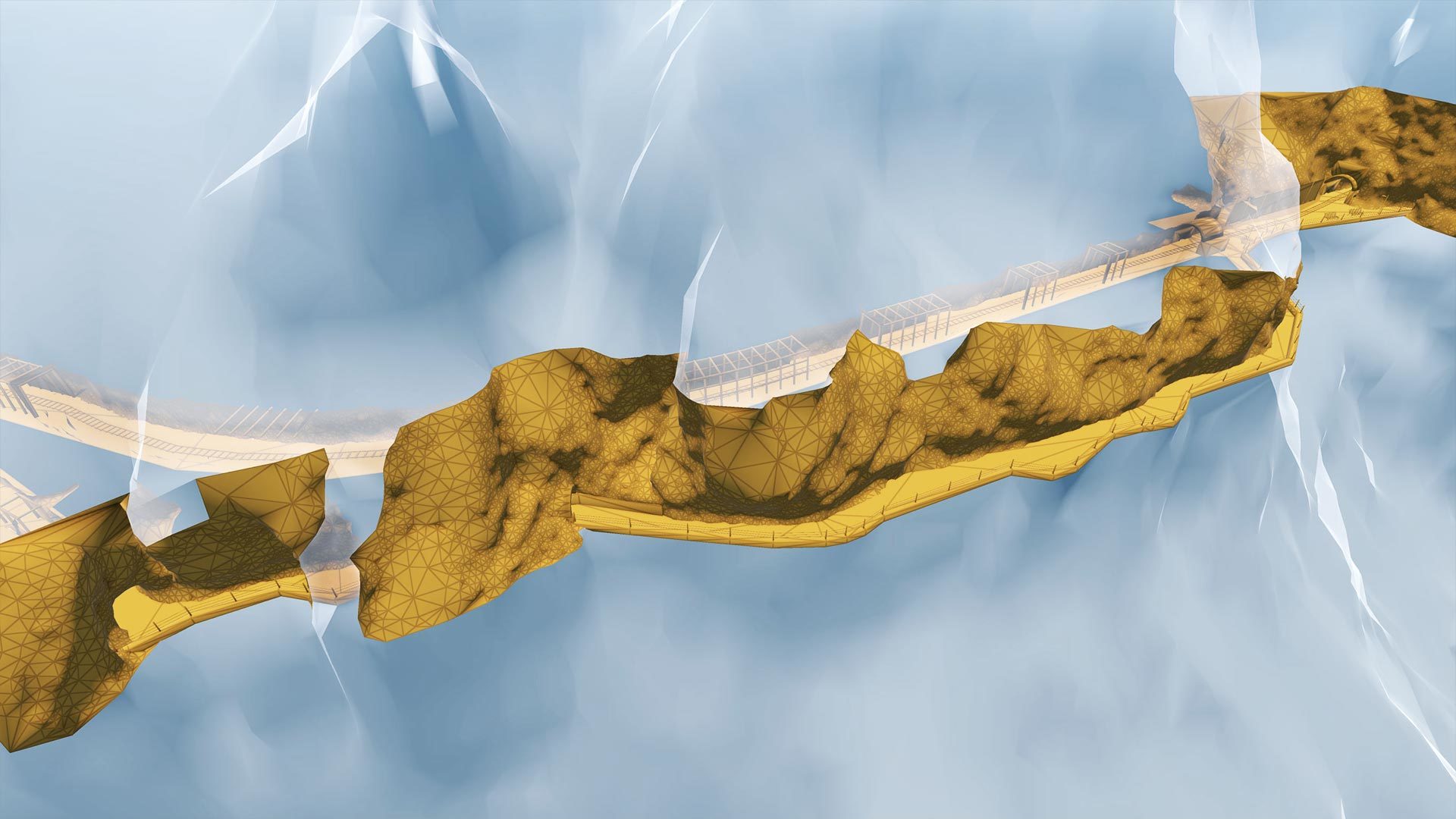

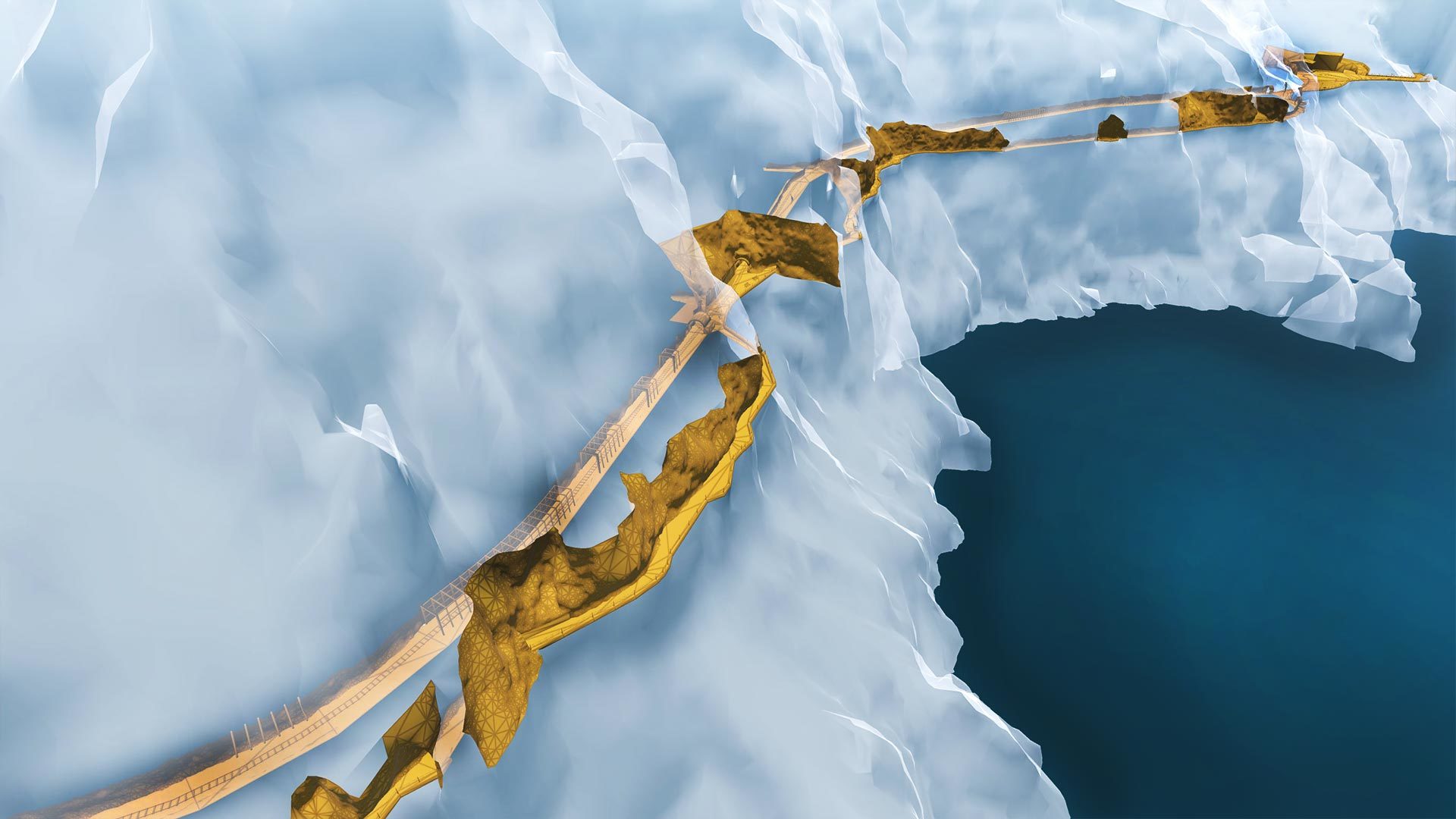

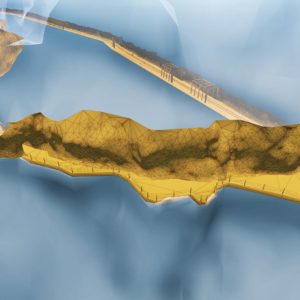

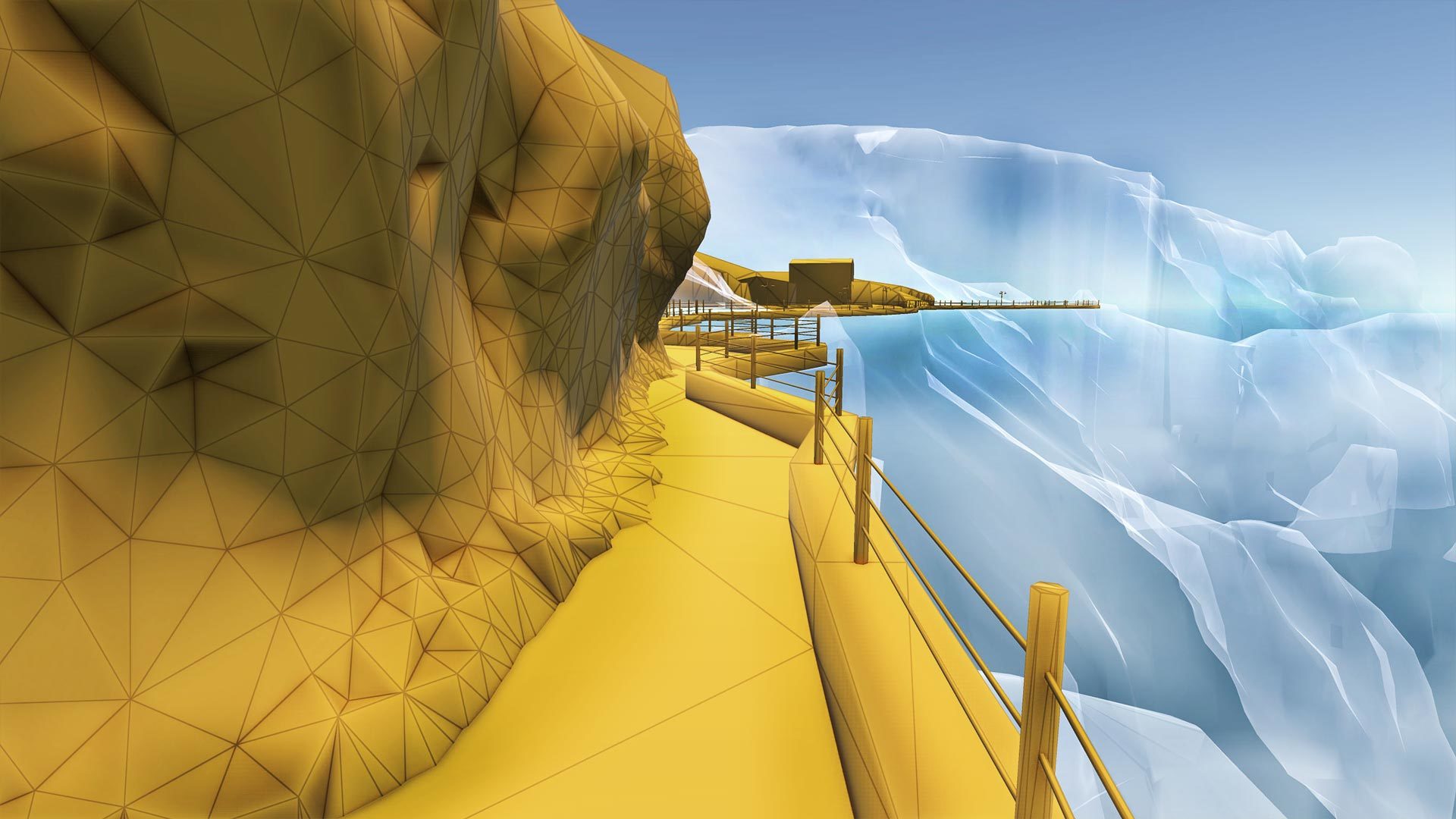

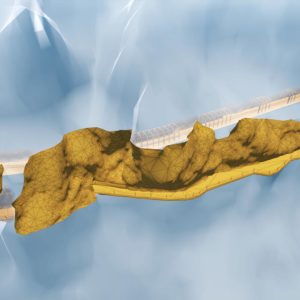

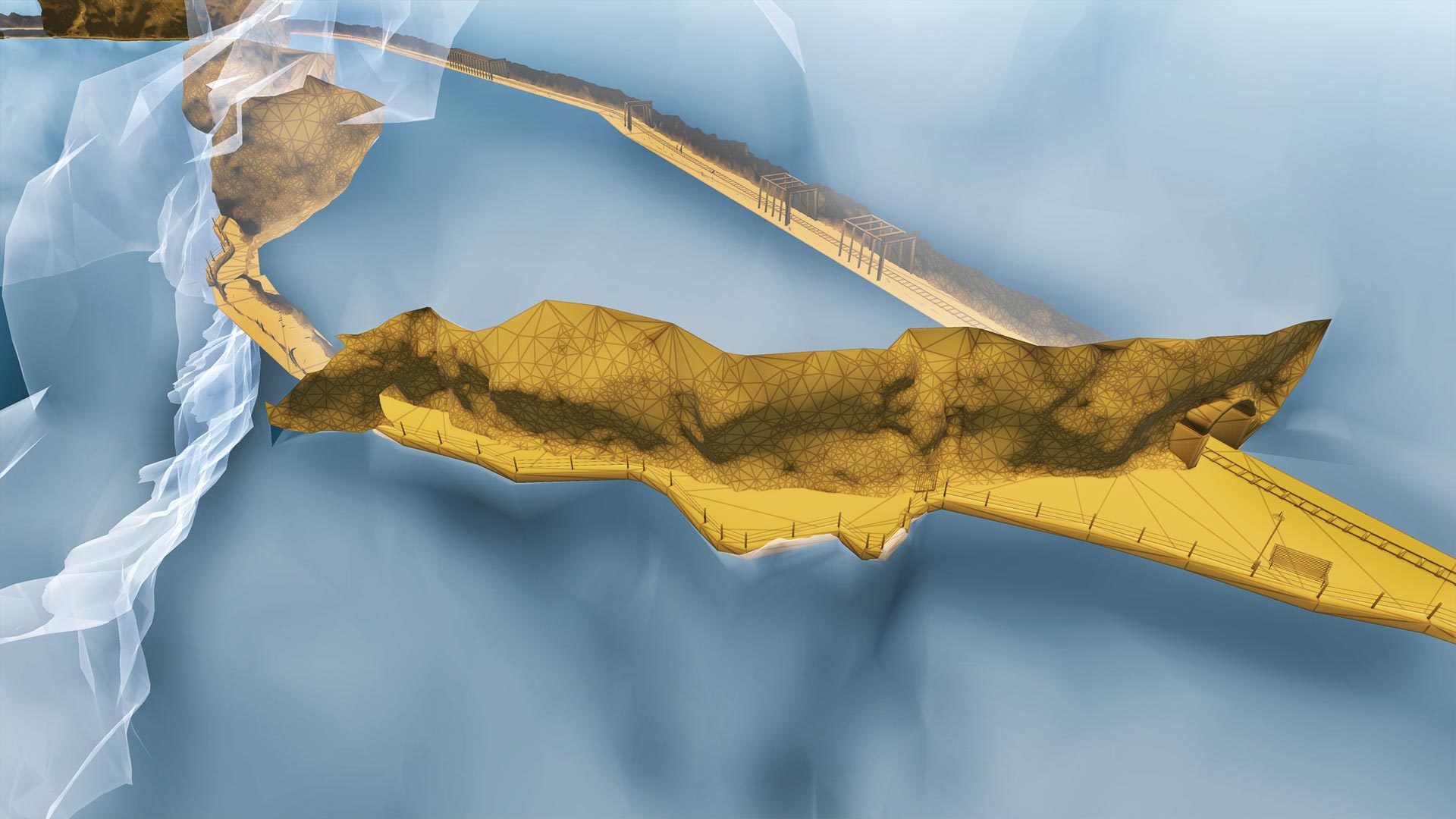

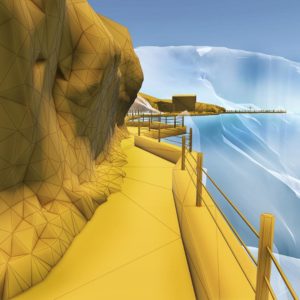

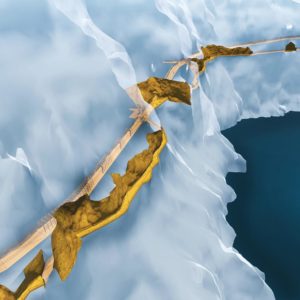

GALLERIA HENRY
The tunnel system of the Galleria Henry has been reconstructed in such a way that the user can virtually visit it and also simulate the on-board trip on the historical train, 3D reproduced as well. The site is located nearby the village of Buggerru.
The simulation is based on a laser survey of the whole internal structure, as well as of a part of the external environment, which required the use of 145 scanning stations. For the description of the external morphological elements a 3D model of the terrain was obtained by cartographic tools.

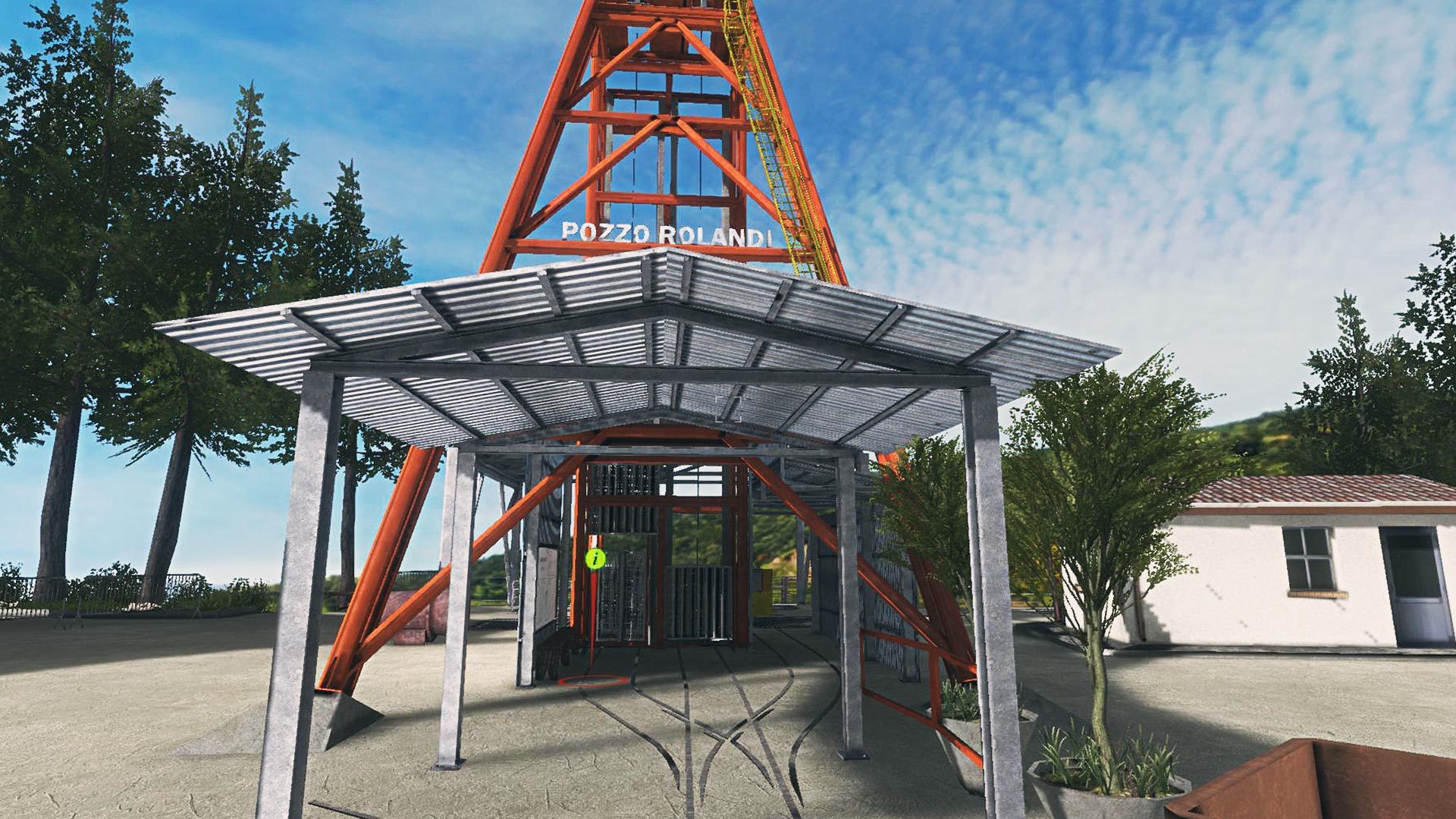

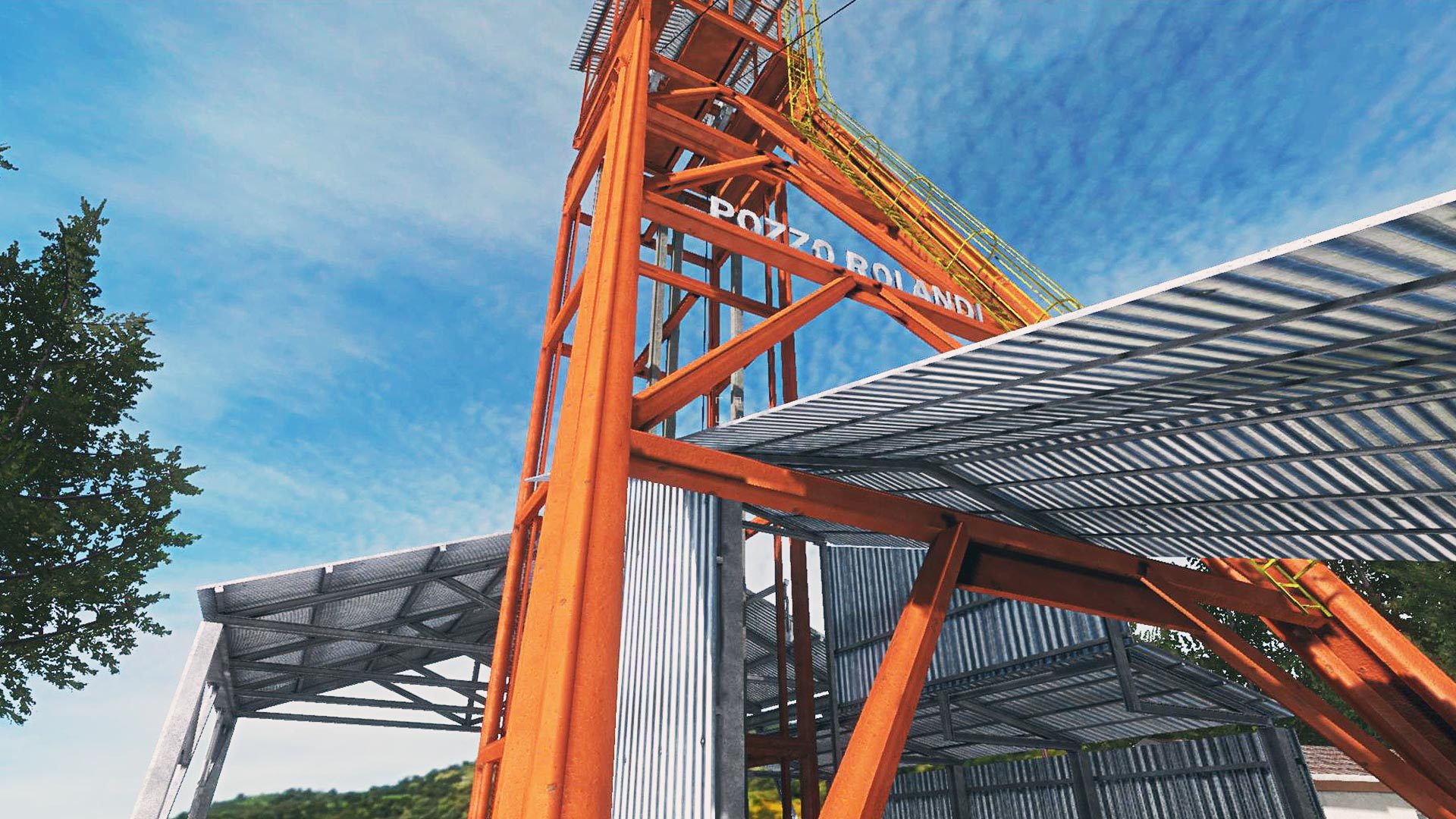

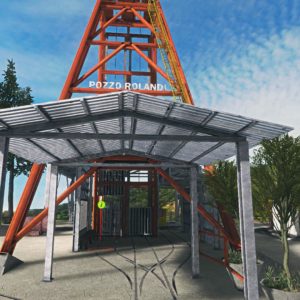

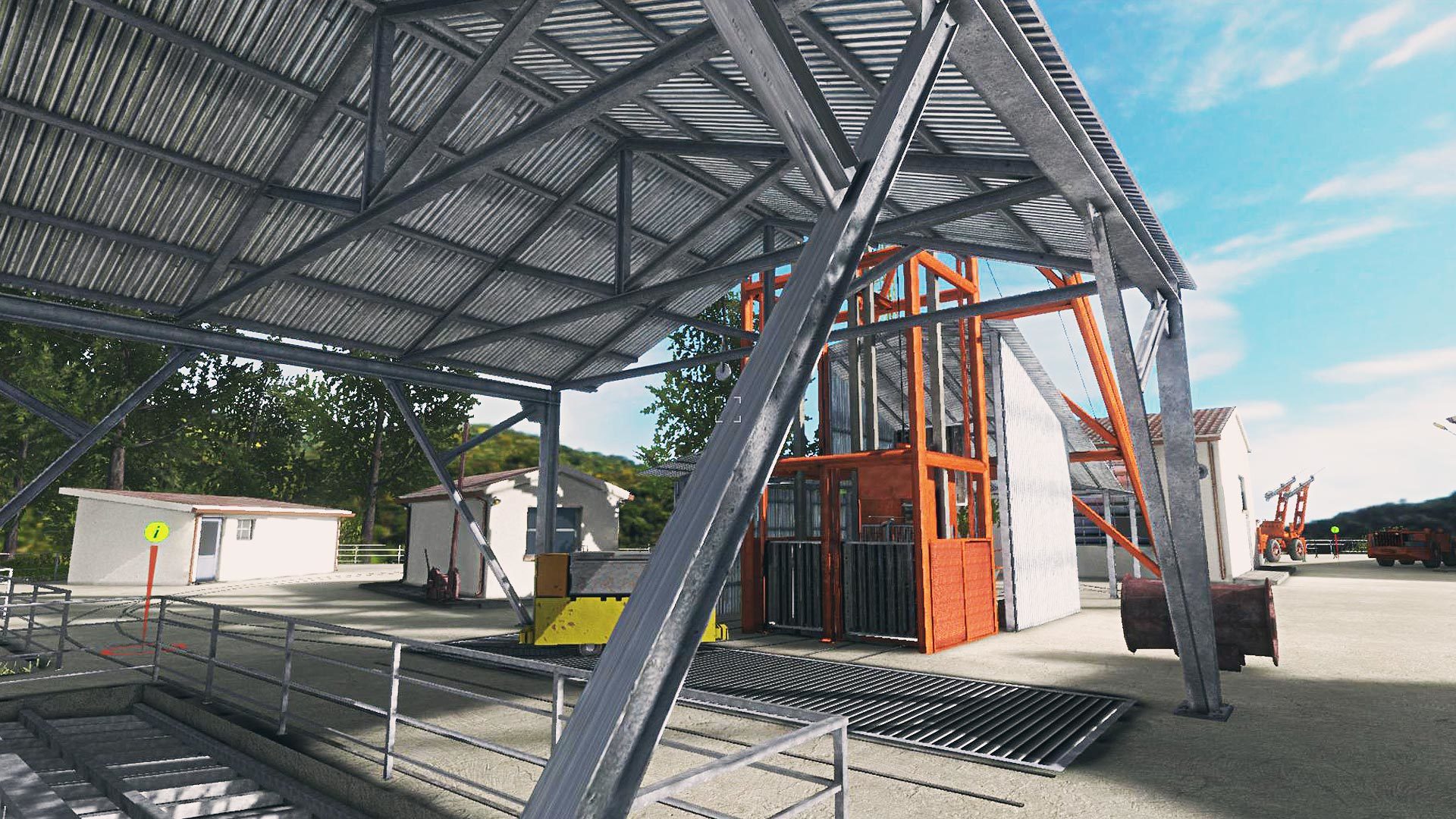

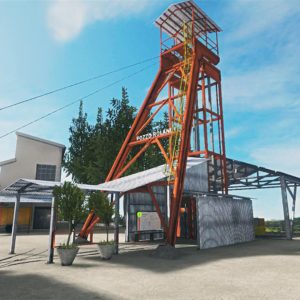

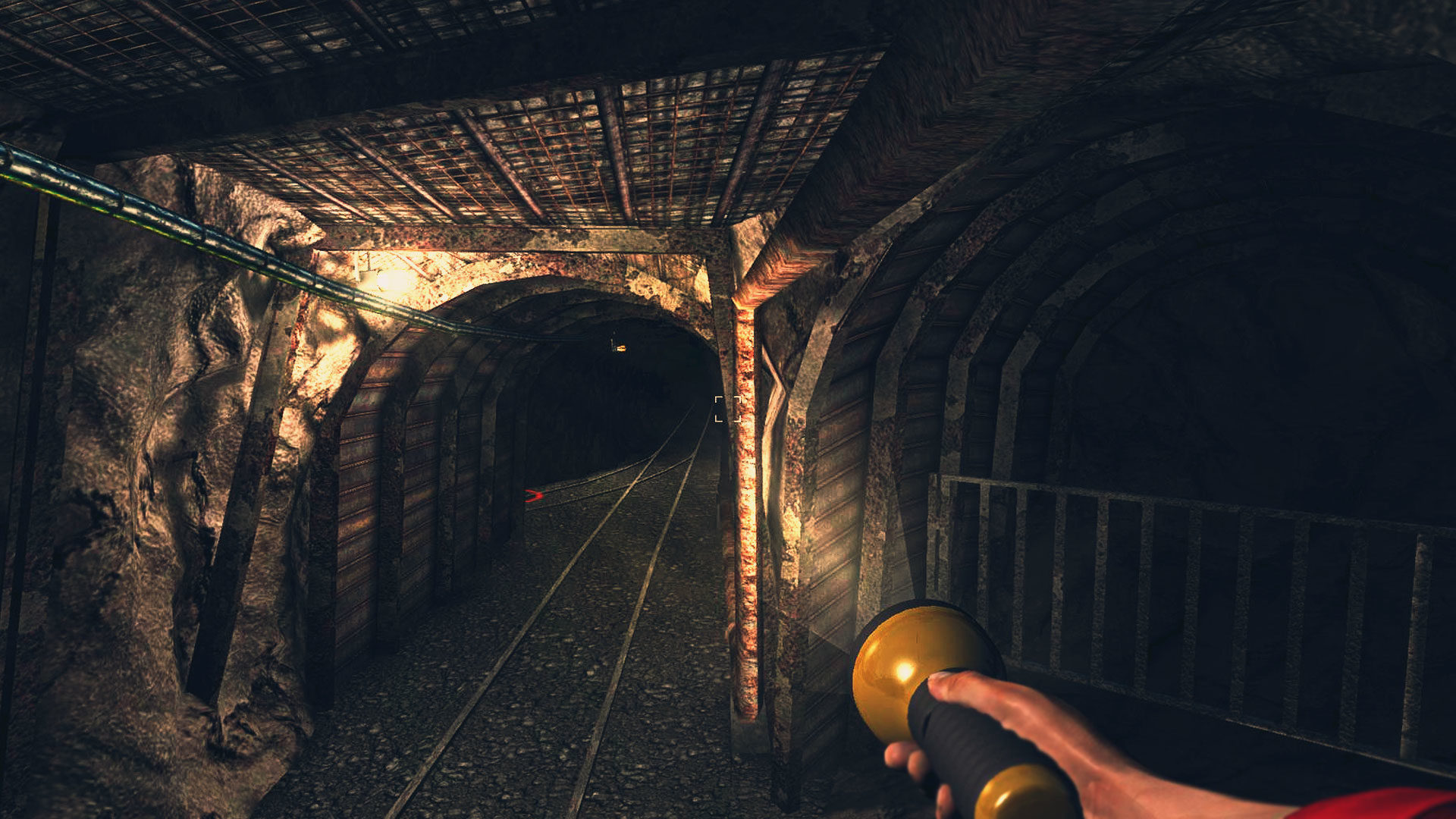

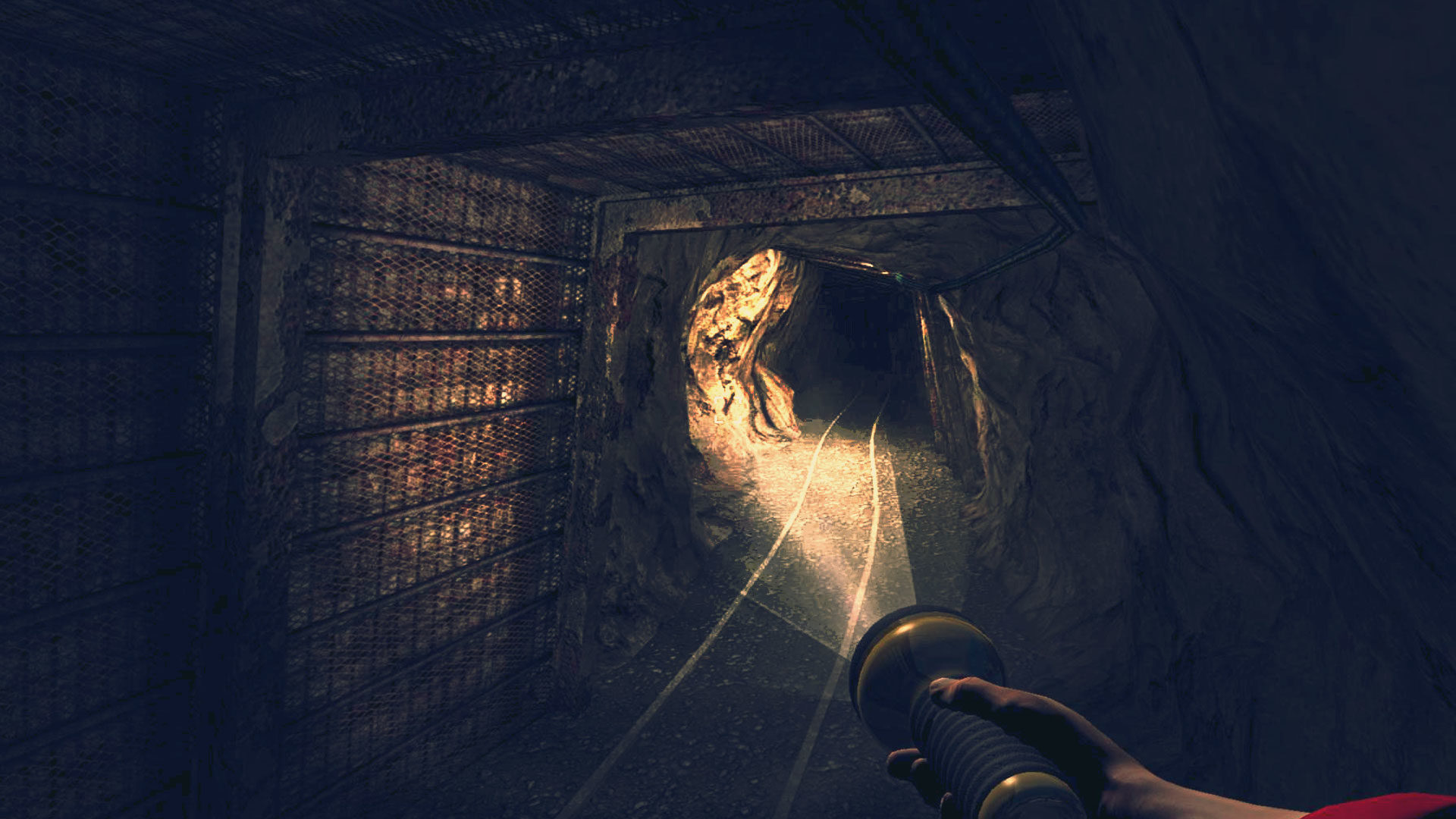

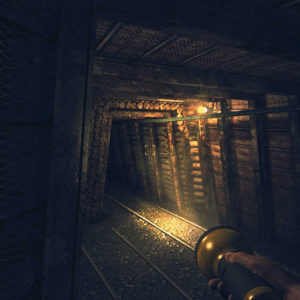

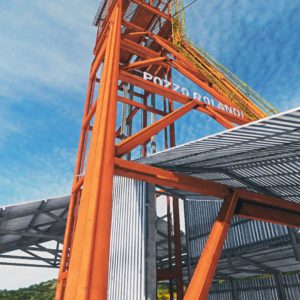

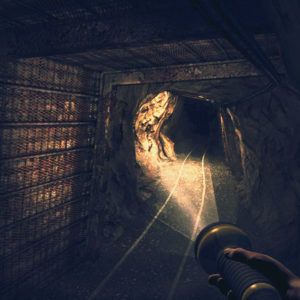

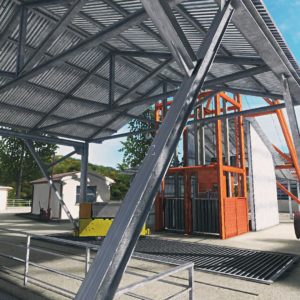

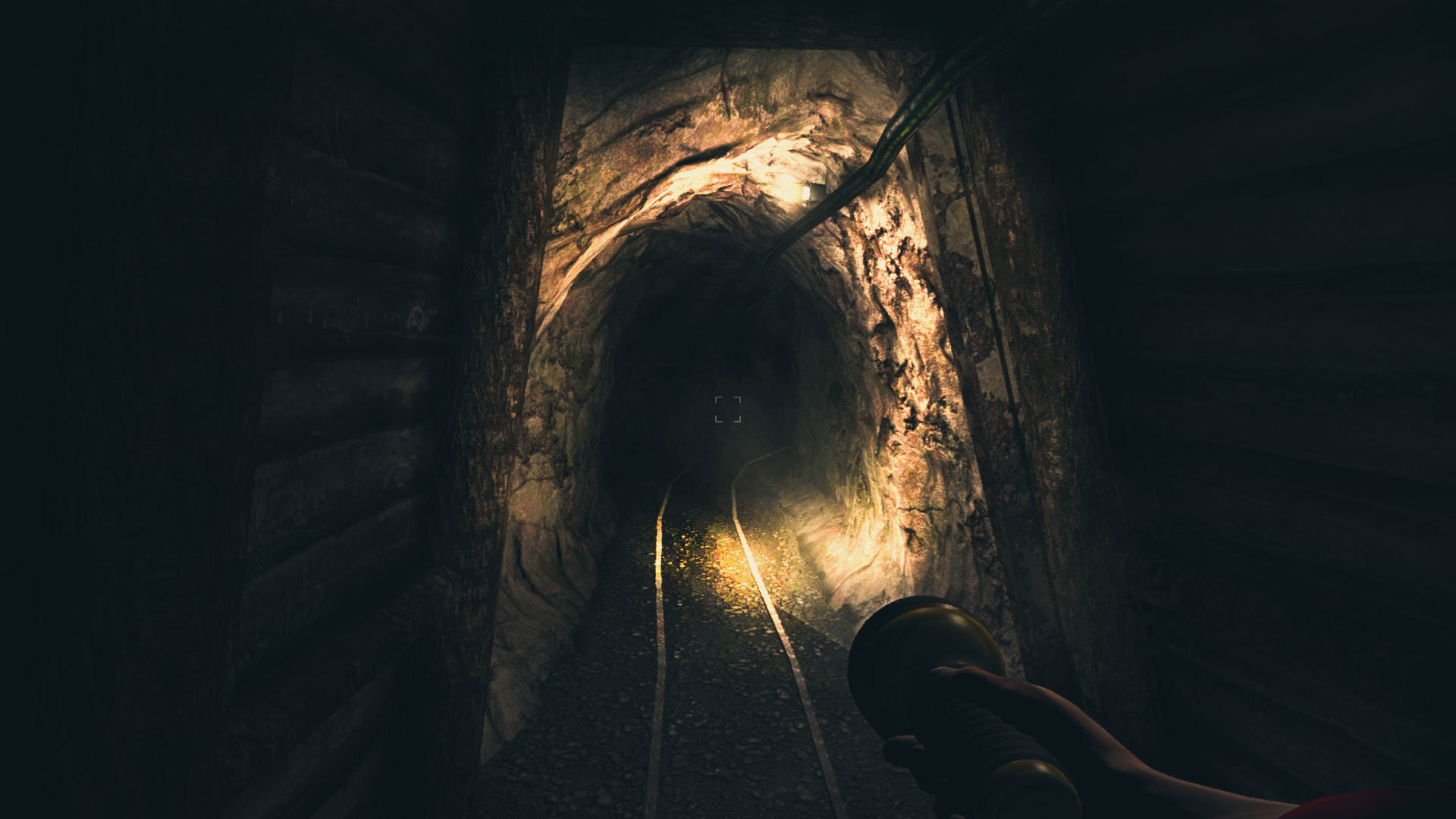

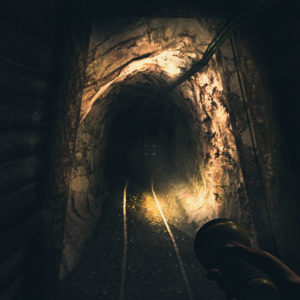

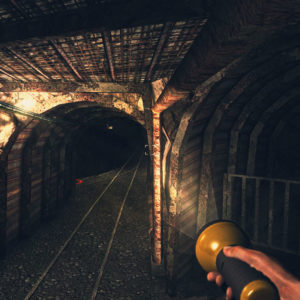

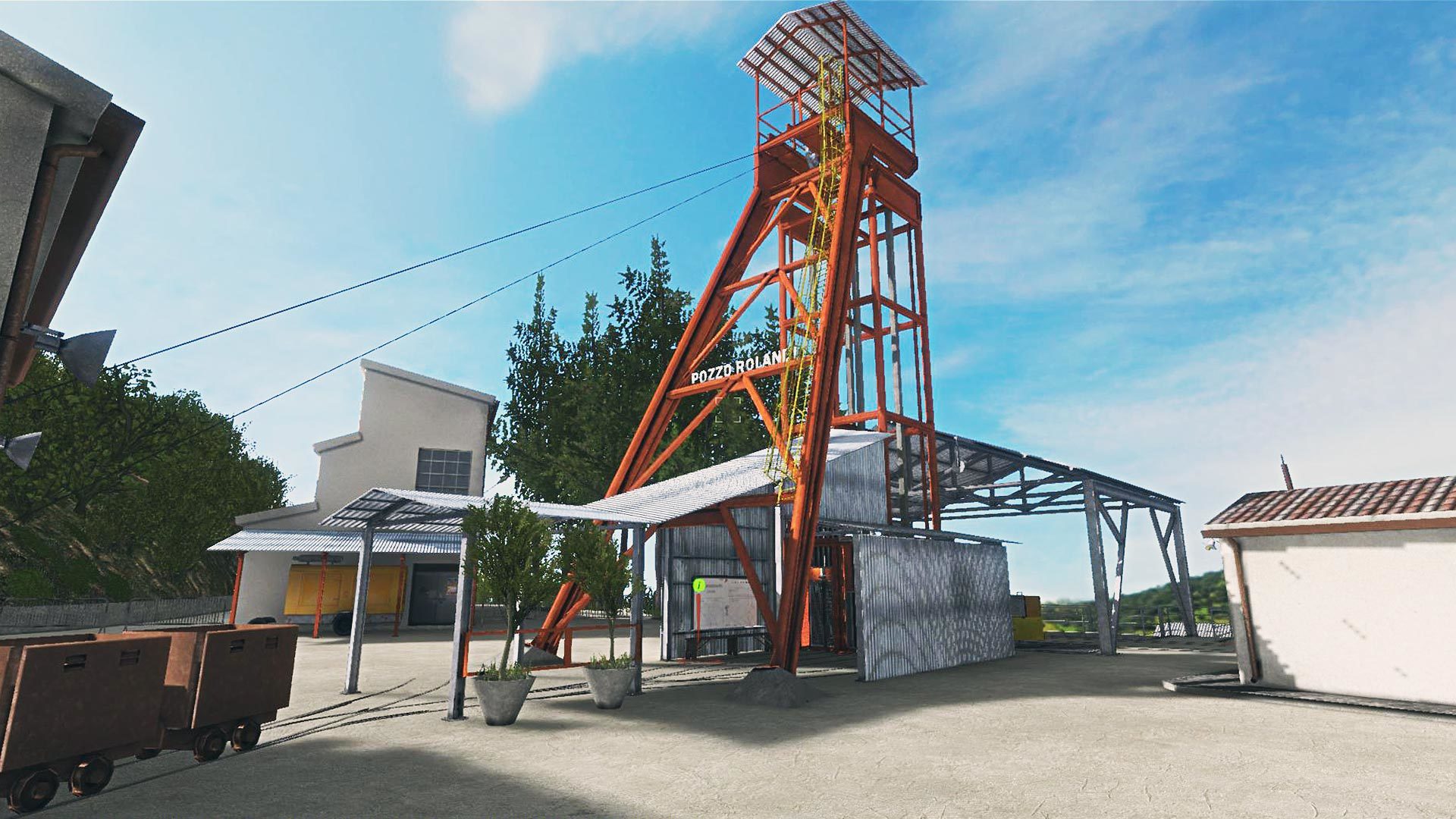

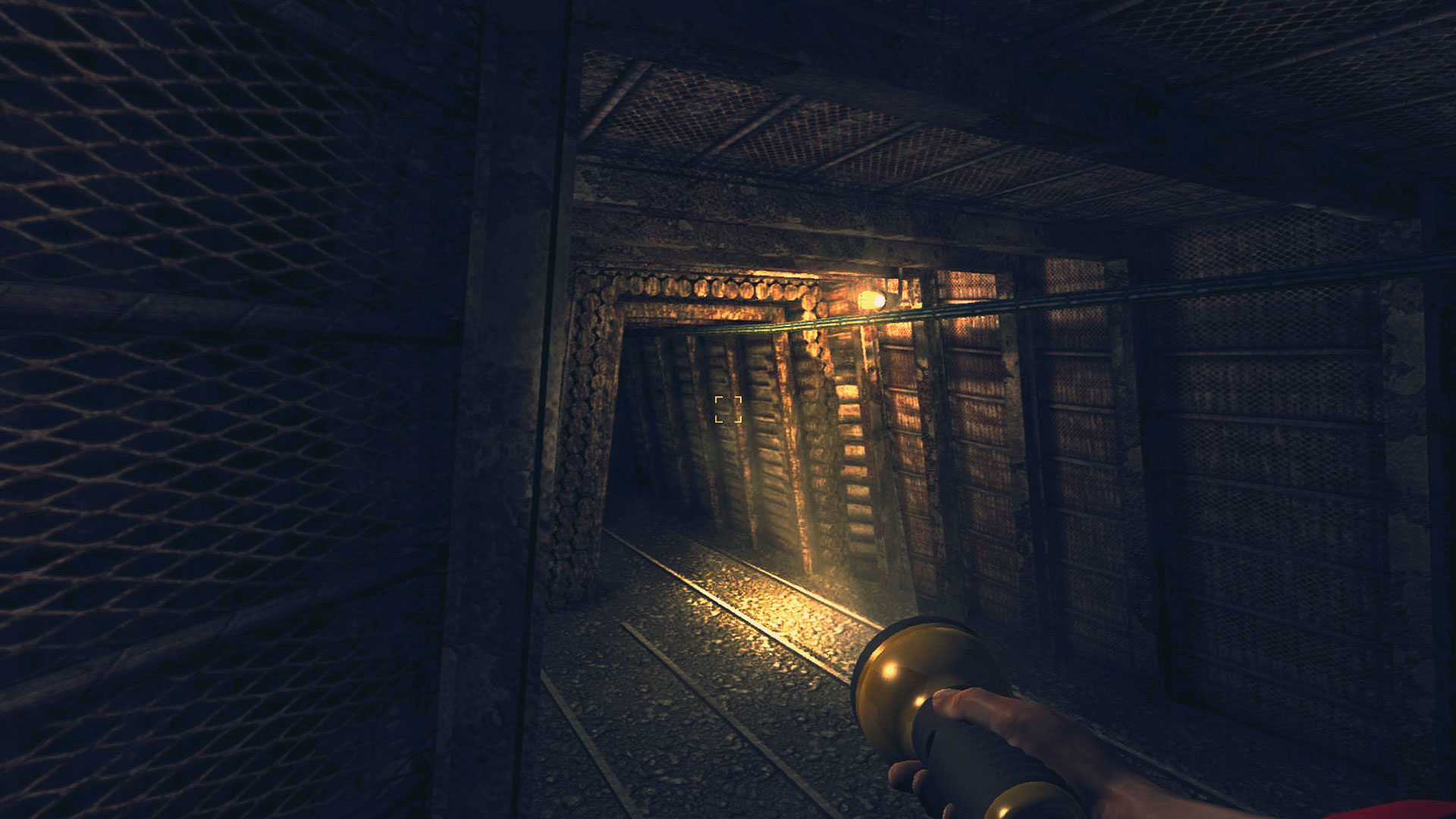

SOS ENATTOS
The project consists in the 3D reconstruction of the Sos Enattos mine, in the municipal territory of Lula. The web application enables the user to virtually visit the mine, accurately reconstructed in 3D.
A laser survey of the tunnel system and the external square requiring some 200 scanning stations was carried out for the 3D reconstruction.

Project Steps

Photographic survey
Laser survey
Optimization of the point cloud obtained by the laser scanner
Conversion of the point cloud into a triangular mesh
Optimization of the rock part mesh
3D model creation
Assignment of materials to the 3D model (texturing )
Terrain 3D modelling based on 1:10000 cartography
Insertion of the model within the graphic engine
Audio interactions and sound effects programming
Interactions and navigation through the scenery
Study of the lighting
Publishing of the simulation on the web
